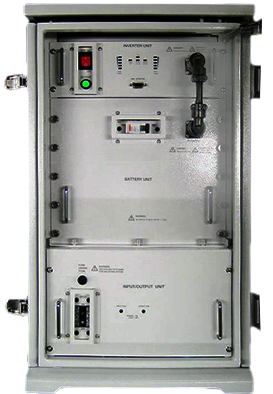

SineLeap™ Line Interactive Convection Cooled Uninterruptable Power System (UPS)

SineLeap™ outdoor line interactive UPS system provides highly versatile and reliable power conditioning and backup power for LED Traffic Control, Public Utility, Telecom Networks, Solar Power Systems, CATV Networks, and Industrial Remote Terminal Units (RTUs). The LP-UP Series allows 300VA - 5000VA power in floor, wall, or outdoor pole mount cabinet configurations in a light weight compact design.

KEY FEATURES
  • Line Interactive Convection Cooled UPSPure Sine Wave Output
  • Enhanced Quality of Service (QoS)
  • Light Weight and Compact
  • Convection Cooled
  • Maintenance Bypass Switch
  • Hot swappable Battery Drawer
SPECIFICATIONS
  • 120VAC: 85 to 175VAC w/o going to batteries
  • 230VAC: 150 to 300VAC w/o going to batteries
  • Frequency 50/60Hz
  • Temp Range -20 °C - +60 °C with Cold Start
  • Less than 5% THD
  • More than 95% Efficiency (line mode)
  • Pure Sine Wave, Single Phase
  • NEMA 3R Cabinet, IEC529 IP54 Protection
  • Switch Time less than 4ms typical
  • Powerful Monitoring and Control Features
  • Battery Thermal Compensation
  • Poll, Floor or Wall Mount Cabinet Options
  • Programmable Form C Relays
  • No Fan means Long Life and No Audible Noise
  • Noise Suppression, FCC Class A
  • LED or Optional LCD Controller Display
  • RS232 or Optional SNMP Interface Module
  • AC Over/Under Voltage Cut Off
  • RS232 or SNMP Interface Module
  • ANSI/IEEE C62.41 Category A, B, C
  • Compliance with UL1778, CSA 22.2 No. 107.3, EN50091-1-2, EN60950
APPLICATIONS
  • Wireless Backhaul
  • Wireless Base Stations (BTS)
  • CATV Networks
  • Point to Point Optical Links
  • LED Traffic Lighting
  • HFC/Broadband Networks
  • Solar Powered Sites
  • CCTV/Gate Security
  • Industrial RTUs
  • Mission Critical Outdoor or Indoor Applications
  • Roadway Display Systems
