Available Now, Great Deal on a "Scratch-and-dent" Unused Transformer - USP&E Exclusive

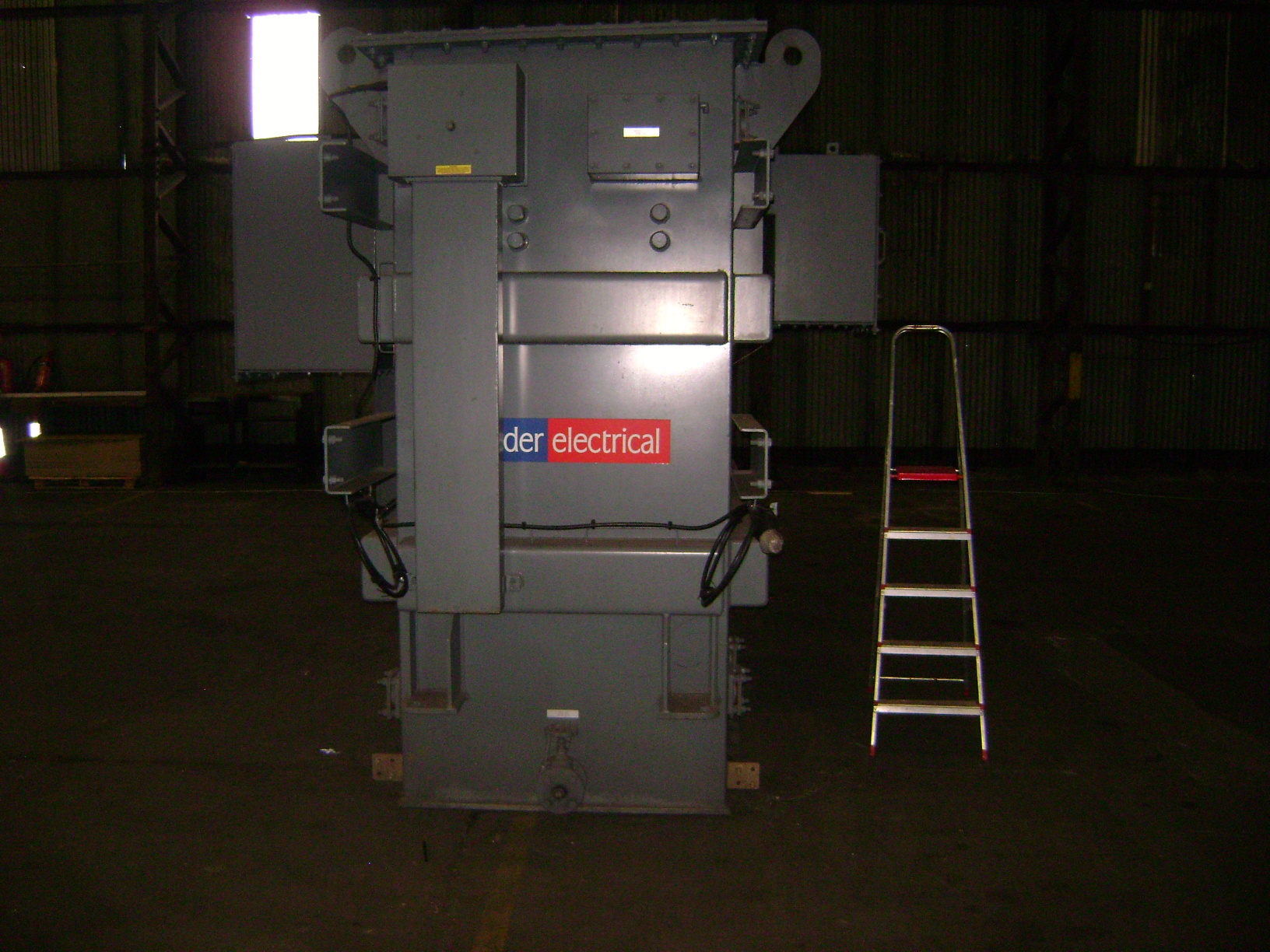

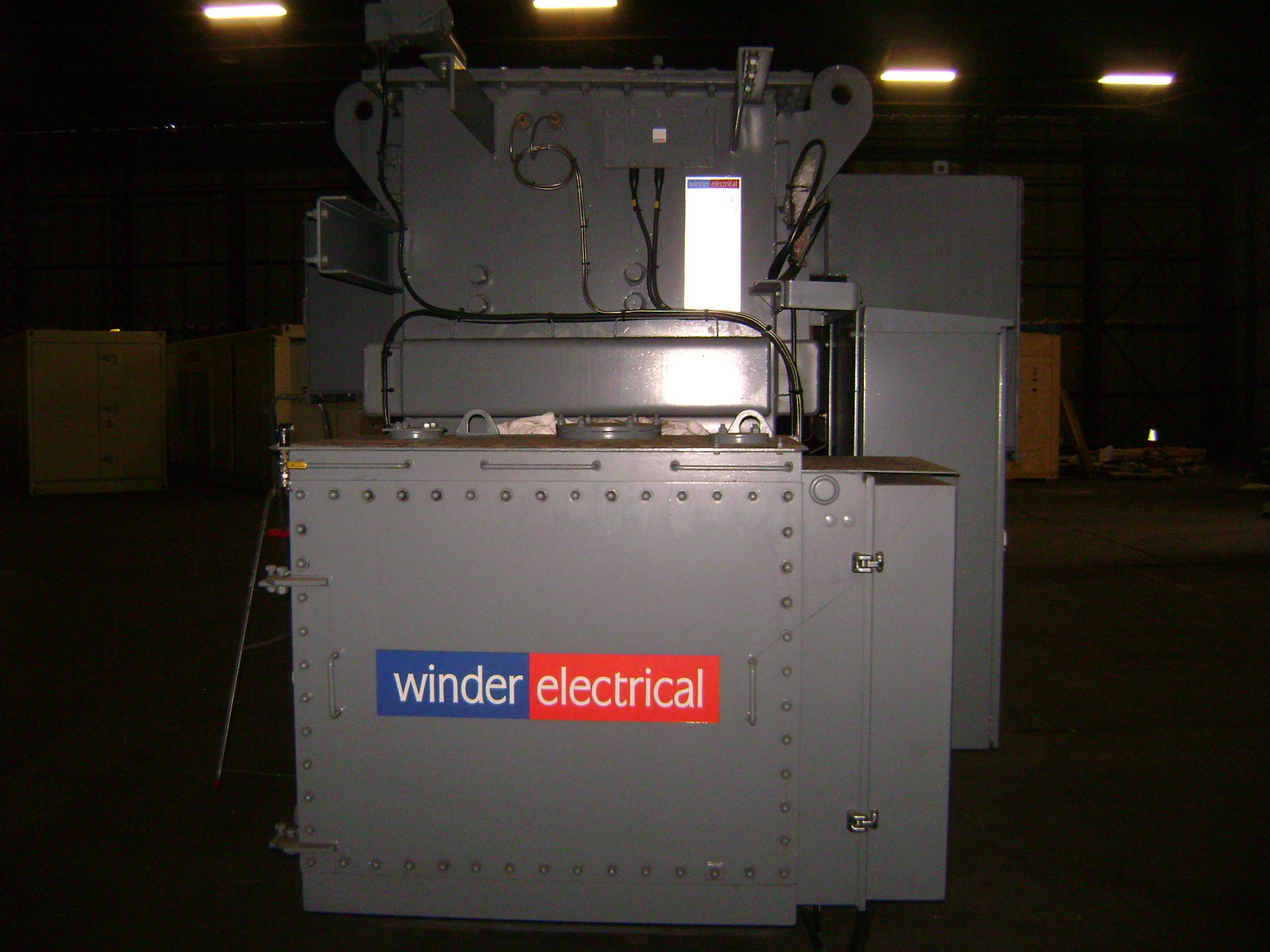

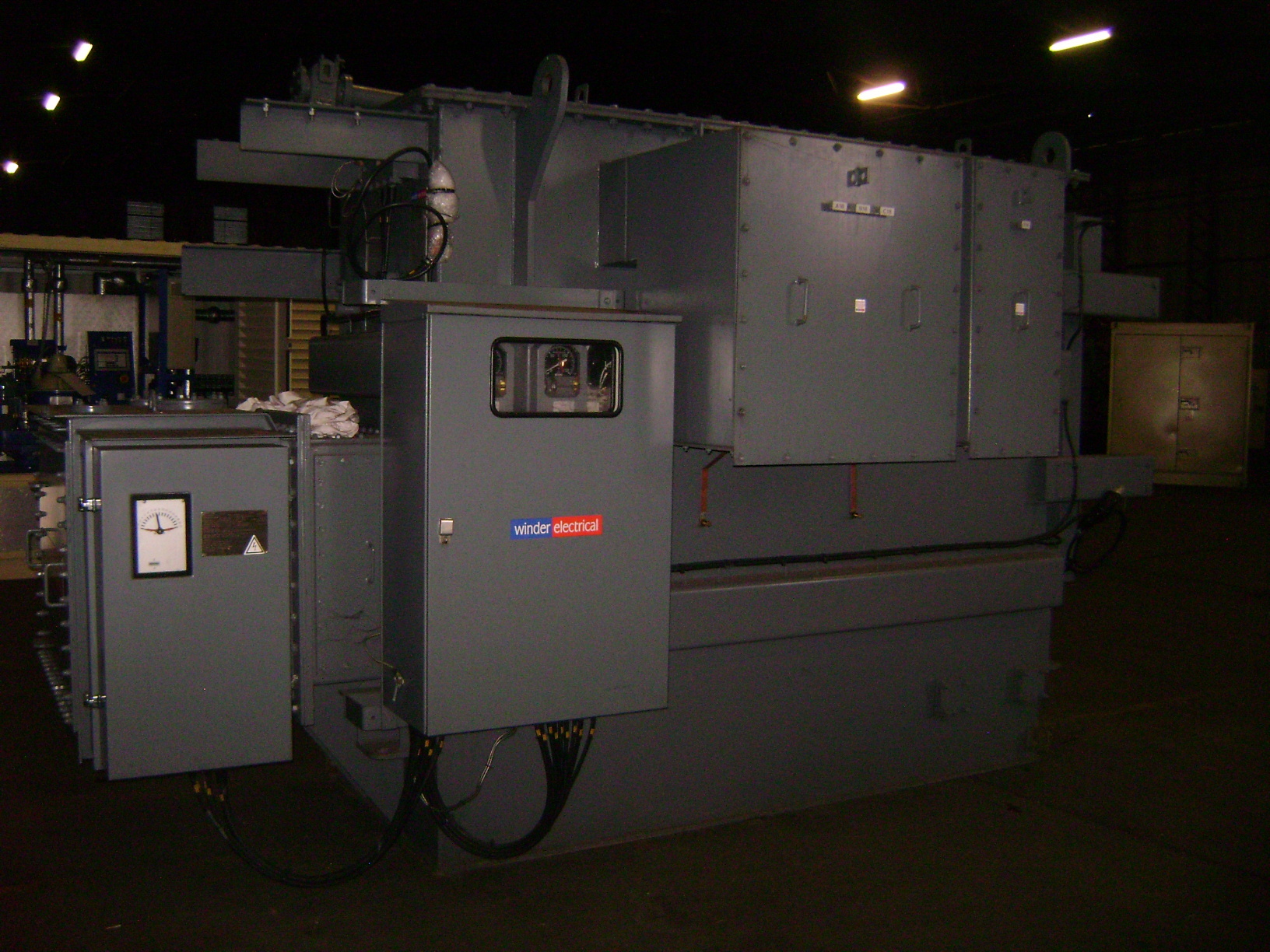

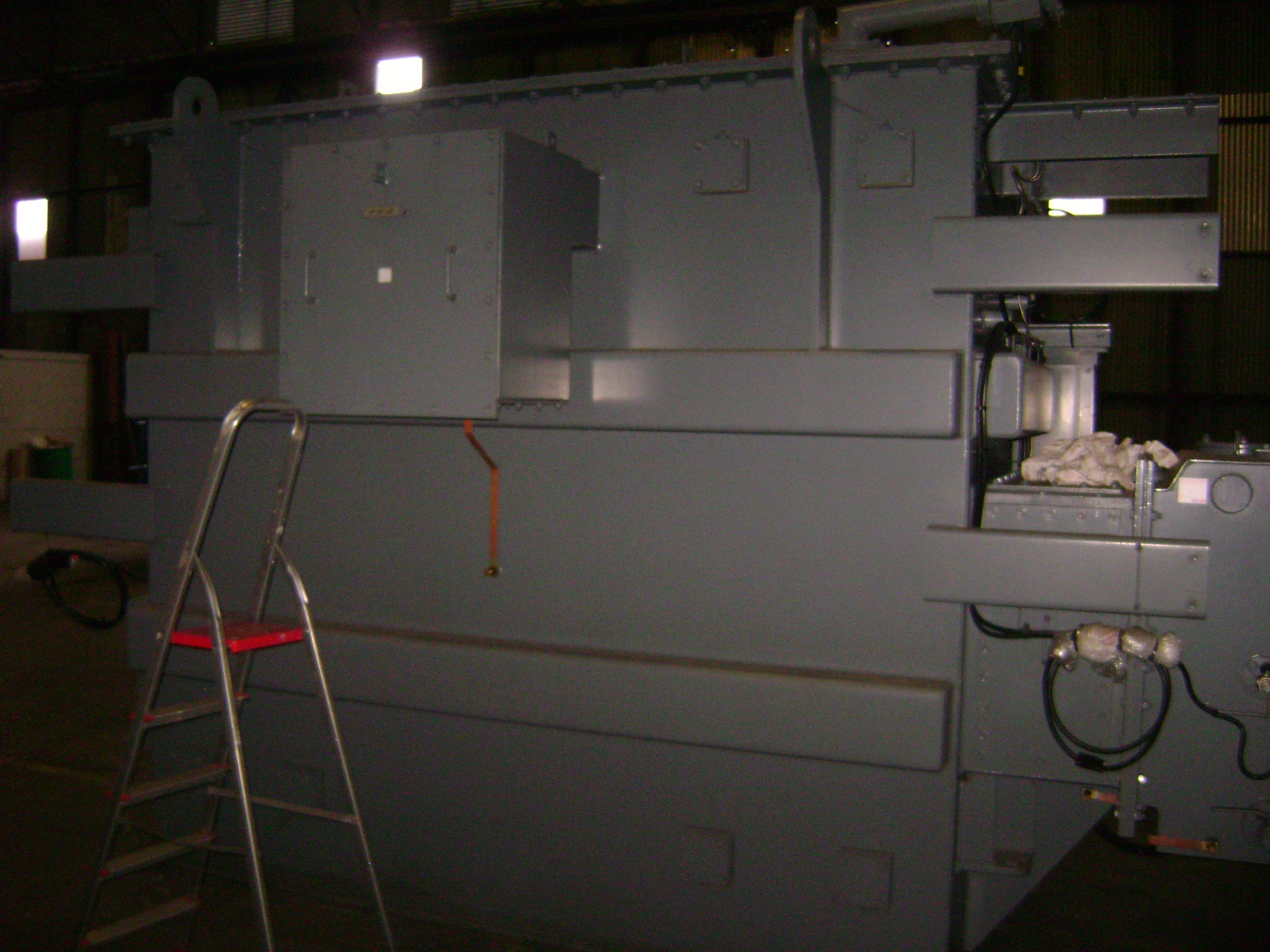

This Winder Electrical transformer was manufactured in 2007 and has never been used. During moving the paint was scratched and a valve was broken. The manufacturer replaced the valve, fully tested, and re-certified the unit. You can see the full repair report from the manufacturer below. There is only 1 unit like this available.
Call +1-469-726-4780 or email info@uspowerco.com
Repair Report

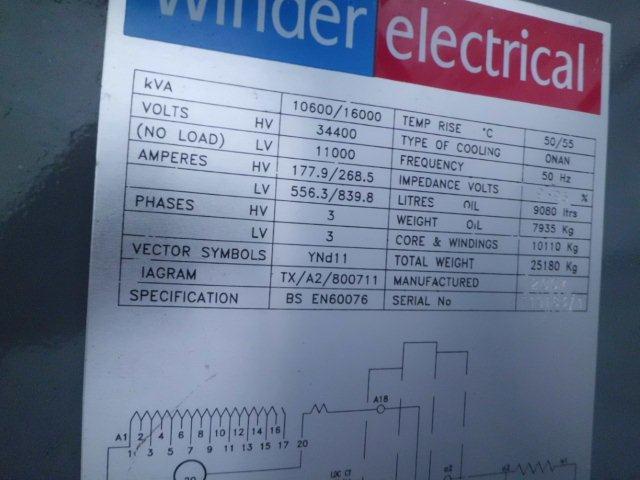

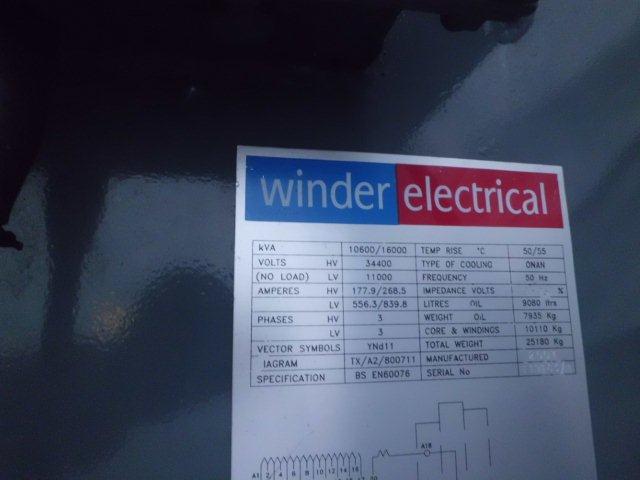

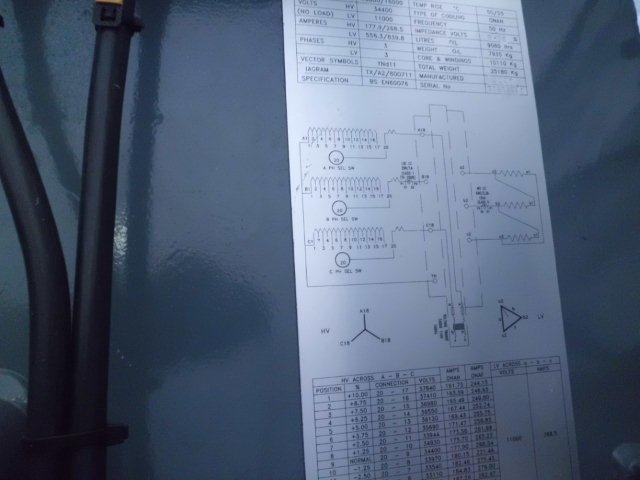

Specs
| Specification IEC | 60076 |
| Rated Output - ONAN | 10600kVA |
| Rated Output - ONAF | 16000kVA |
| HV Voltage (Off Load) | 34400V |
| LV Voltage | 11000V |
| HV Current - ONAN | 177.9A |
| LV Current - ONAF | 556.3A |
| HV Current - ONAN | 268.5A |
| LV Current - ONAF | 839.7A |
| Phases | 3 |
| Frequency | 50Hz |
| Vector Group | YNd11 |
| Insulation Levels HV 36kV | 70kV Power Frequency 170kV Lightning Impulse Voltage |
| Insulation Levels LV 12kV | 28kV Power Frequency 75kV Lightning Impulse Voltage |
| Top Oil Temperature Rise | 50°C |
| Winding Temperature Rise | 55°C |
| Ambient Temperature | 50°C |
| Approximate Losses - ONAN | 8000W Cu - 73000W |
| Impedance - ONAN | 10% |
| Impedance ONAF | 15.1% |
| Tapping Range | +10 to -10% in 16 steps of 1.25% |
| Type of transformer | Conservator type |
| Cooling | Oil (ONAF) |
| Quantity of liquid | 9080 litres |
| Approx Dimensions | L5440mm x W4260mm x H4030mm |
| Approx Weight | 25180kg |
Figures quoted above are subject to IEC tolerance, ie, +/- 10%
Cores
The transformer cores are built from cold reduced grain orientated steel laminations with mitered joints, working at a flux density of 1.74T. The laminations are supplied with a phosphate coating to keep losses to a minimum. The core is supported with strong channel end frames, insulated from the core and protected with oil resisting varnish.
Windings
The windings are constructed from paper insulated copper. Cooling of the windings is achieved by the appropriate amount of ducts; ensuring local hot spots are avoided.
Tanks
The tanks are made from mild steel plate of sufficient thickness and stiffened to enable the complete transformer to be lifted or jacked safely, without distortion. Cooling radiators with isolation valves are fitted to the tank side.

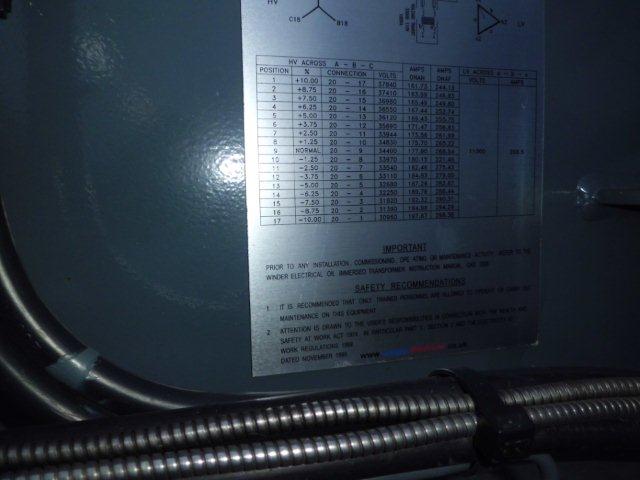

On Load Tap Changer
The on load tapchanger will be supplied with 17 positions for linear regulation of the tapping windings.
The tapchanger would be an automatic, + 10% to - 10% in 1.25% steps. We have also included for a 100VA, 11000/110V VT to be mounted in the transformer tank and a tank mounted tapchanger, including a tank mounted automatic tapchanger/fan control panel.
Fittings
The transformer will be supplied with a rating and tapping connection plate, earthing terminal, prismatic oil level gauge, lifting lugs, thermometer pocket, drain valve, jacking points, Buchholz relay, Qualitrol pressure relief device, winding temperature indicator and magnetic oil level gauge, all with contacts wired back to the auxiliary wiring terminal box and 3 x 1000mm diameter fans.
Terminations
HV - 3P, 3G, bottom entry cable box, complete with porcelain bushings, suitable for Raychem termination HV neutral - 1P, 1G, bottom entry cable box, complete with porcelain bushings, suitable for Raychem termination LV - 3P, 6G, bottom entry cable box, complete with porcelain bushings and suitable for air clearances
Testing
Routine tests will be carried out in line with IEC 60076-1. The rated withstand voltage levels will be in line IEC 60076 Part 3 section 5.3. Our offer does not include for any type testing.
Paint Finish
Dark Admiralty Grey
